Why is logistic regression considered a linear model?

The short answer is: Logistic regression is considered a generalized linear model because the outcome always depends on the sum of the inputs and parameters. Or in other words, the output cannot depend on the product (or quotient, etc.) of its parameters!

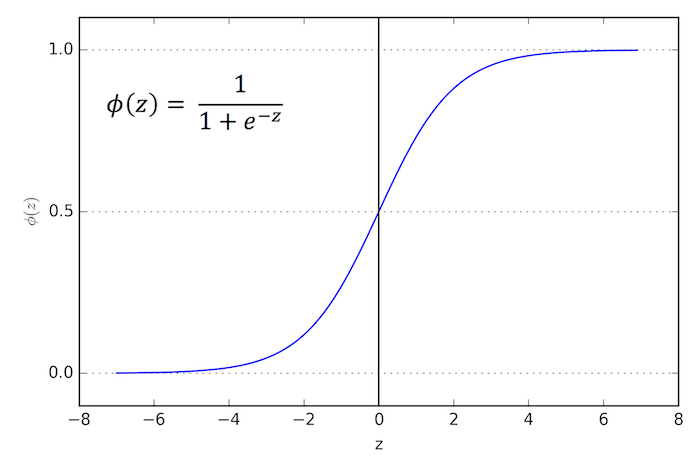

So, why is that? Let’s recapitulate the basics of logistic regression first, which hopefully makes things more clear. Logistic regression is an algorithm that learns a model for binary classification. A nice side-effect is that it gives us the probability that a sample belongs to class 1 (or vice versa: class 0). Our objective function is to minimize the so-called logistic function Φ (a certain kind of sigmoid function); it looks like this:

Now, if φ(z) is larger than 0.5 (alternatively: if z is larger than 0), we classify an input as class 1 (and class 0, otherwise). Although logistic regression produces a linear decision surface (see the classification example in the figure below) this logistic (activation) function doesn’t look very linear at all, right!?doesn’t look very linear at all, right!?

So, let’s dig a bit deeper and take a look at the equation we use to compute z – the net input function!

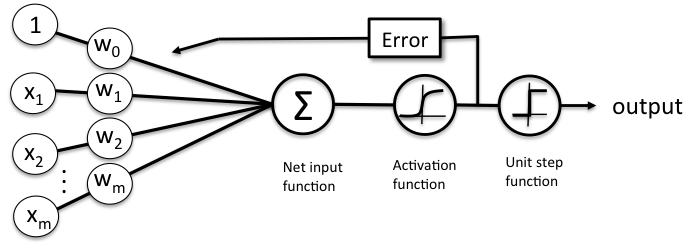

The net input function is simply the dot product of our input features and the respective model coefficients w:

Here, x0 refers to the weight of the bias unit which is always equal to 1 (a detail we don’t have to worry about here). I know, mathematical equations can be a bit “abstract” at times, so let’s look at a concrete example.

Let’s assume we have a sample training point x consisting of 4 features (e.g., sepal length, sepal width, petal length, and petal width in the Iris dataset):

x = [1, 2, 3, 4]

Now, let’s assume our weight vector looks like this:

w = [0.5, 0.5, 0.5, 0.5]

Let’s compute z now!

z = wTx = 10.5 + 20.5 + 30.5 + 40.5 = 5

Not that it is important, but we have a 99.3% chance that this sample belongs to class 1:

Φ(z=148.41) = 1 / (1 + e-5) = 0.993

The key is that our model is additive our outcome z depends on the additivity of the weight parameter values, e.g., :

z = w1x1 + w2x2

There’s no interaction between the weight parameter values, nothing like w1x1 * w2x2

or so, which would make our model non-linear!
