Implementing a Principal Component Analysis (PCA) in Python step by step

-- written by Sebastian Raschka on April 13, 2014
Tweet

In this article I want to explain how a Principal Component Analysis (PCA) works by implementing it in Python step by step. At the end we will compare the results to the more convenient Python PCA()classes that are available through the popular matplotlib and scipy libraries and discuss how they differ.

Sections

Introduction

The main purposes of a principal component analysis are the analysis of data to identify patterns and finding patterns to reduce the dimensions of the dataset with minimal loss of information.

Here, our desired outcome of the principal component analysis is to project a feature space (our dataset consisting of $n$ $d$-dimensional samples) onto a smaller subspace that represents our data "well". A possible application would be a pattern classification task, where we want to reduce the computational costs and the error of parameter estimation by reducing the number of dimensions of our feature space by extracting a subspace that describes our data "best".

Principal Component Analysis (PCA) Vs. Multiple Discriminant Analysis (MDA)

Both Multiple Discriminant Analysis (MDA) and Principal Component Analysis (PCA) are linear transformation methods and closely related to each other. In PCA, we are interested to find the directions (components) that maximize the variance in our dataset, where in MDA, we are additionally interested to find the directions that maximize the separation (or discrimination) between different classes (for example, in pattern classification problems where our dataset consists of multiple classes. In contrast two PCA, which ignores the class labels).
In other words, via PCA, we are projecting the entire set of data (without class labels) onto a different subspace, and in MDA, we are trying to determine a suitable subspace to distinguish between patterns that belong to different classes. Or, roughly speaking in PCA we are trying to find the axes with maximum variances where the data is most spread (within a class, since PCA treats the whole data set as one class), and in MDA we are additionally maximizing the spread between classes.
In typical pattern recognition problems, a PCA is often followed by an MDA.

What is a "good" subspace?

Let's assume that our goal is to reduce the dimensions of a $d$-dimensional dataset by projecting it onto a $(k)$-dimensional subspace (where $k\;<\;d$). So, how do we know what size we should choose for $k$, and how do we know if we have a feature space that represents our data "well"?
Later, we will compute eigenvectors (the components) from our data set and collect them in a so-called scatter-matrix (or alternatively calculate them from the covariance matrix). Each of those eigenvectors is associated with an eigenvalue, which tell us about the "length" or "magnitude" of the eigenvectors. If we observe that all the eigenvalues are of very similar magnitude, this is a good indicator that our data is already in a "good" subspace. Or if some of the eigenvalues are much much higher than others, we might be interested in keeping only those eigenvectors with the much larger eigenvalues, since they contain more information about our data distribution. Vice versa, eigenvalues that are close to 0 are less informative and we might consider in dropping those when we construct the new feature subspace.


About the notation:

In the following sections, we will use a bold-face and lower-case letters for denoting column vectors (e.g., $\mathbf{e}$) and bold-face upper-case letters for matrices (e.g., $\mathbf{W}$)


Summarizing the PCA approach

Listed below are the 6 general steps for performing a principal component analysis, which we will investigate in the following sections.

  1. Take the whole dataset consisting of $d$-dimensional samples ignoring the class labels
  2. Compute the $d$-dimensional mean vector (i.e., the means for every dimension of the whole dataset)
  3. Compute the scatter matrix (alternatively, the covariance matrix) of the whole data set
  4. Compute eigenvectors ($\mathbf{e}_1, \; \mathbf{e}_2, \; ..., \; \mathbf{e}_d $) and corresponding eigenvalues ($\mathbf{\lambda}_1, \; \mathbf{\lambda}_2, \; ..., \; \mathbf{\lambda}_d$)
  5. Sort the eigenvectors by decreasing eigenvalues and choose $k$ eigenvectors with the largest eigenvalues to form a $d \times k $ dimensional matrix $\mathbf{W}\;$(where every column represents an eigenvector)
  6. Use this $d \times k $ eigenvector matrix to transform the samples onto the new subspace. This can be summarized by the mathematical equation: $\mathbf{y} = \mathbf{W}^T \times \mathbf{x}$ (where $\mathbf{x}$ is a $d \times 1$-dimensional vector representing one sample, and $\mathbf{y}$ is the transformed $k \times 1$-dimensional sample in the new subspace.)

Generating some 3-dimensional sample data

For the following example, we will generate 40 3-dimensional samples randomly drawn from a multivariate Gaussian distribution.
Here, we will assume that the samples stem from two different classes, where one half (i.e., 20) samples of our data set are labeled $\omega_1$ (class 1) and the other half $\omega_2$ (class 2).

$\mathbf{\mu_1} = $ $\begin{bmatrix}0\\0\\0\end{bmatrix}$ $\quad\mathbf{\mu_2} = $ $\begin{bmatrix}1\\1\\1\end{bmatrix}\quad$(sample means)

$\mathbf{\Sigma_1} = $ $\begin{bmatrix}1\quad 0\quad 0\\0\quad 1\quad0\\0\quad0\quad1\end{bmatrix}$ $\quad\mathbf{\Sigma_2} = $ $\begin{bmatrix}1\quad 0\quad 0\\0\quad 1\quad0\\0\quad0\quad1\end{bmatrix}\quad$ (covariance matrices)

Why are we chosing a 3-dimensional sample?

The problem of multi-dimensional data is its visualization, which would make it quite tough to follow our example principal component analysis (at least visually). We could also choose a 2-dimensional sample data set for the following examples, but since the goal of the PCA in an "Diminsionality Reduction" application is to drop at least one of the dimensions, I find it more intuitive and visually appealing to start with a 3-dimensional dataset that we reduce to an 2-dimensional dataset by dropping 1 dimension.

import numpy as np

np.random.seed(1) # random seed for consistency

mu_vec1 = np.array([0,0,0])
cov_mat1 = np.array([[1,0,0],[0,1,0],[0,0,1]])
class1_sample = np.random.multivariate_normal(mu_vec1, cov_mat1, 20).T
assert class1_sample.shape == (3,20), "The matrix has not the dimensions 3x20"

mu_vec2 = np.array([1,1,1])
cov_mat2 = np.array([[1,0,0],[0,1,0],[0,0,1]])
class2_sample = np.random.multivariate_normal(mu_vec2, cov_mat2, 20).T
assert class1_sample.shape == (3,20), "The matrix has not the dimensions 3x20"

Using the code above, we created two $3\times20$ datasets - one dataset for each class $\omega_1$ and $\omega_2$ -
where each column can be pictured as a 3-dimensional vector $\mathbf{x} = \begin{pmatrix} x_1 \\ x_2 \\ x_3 \end{pmatrix}$ so that our dataset will have the form
$\mathbf{X} = \begin{pmatrix} x_{1_1}\; x_{1_2} \; ... \; x_{1_{20}}\\ x_{2_1} \; x_{2_2} \; ... \; x_{2_{20}}\\ x_{3_1} \; x_{3_2} \; ... \; x_{3_{20}}\end{pmatrix}$

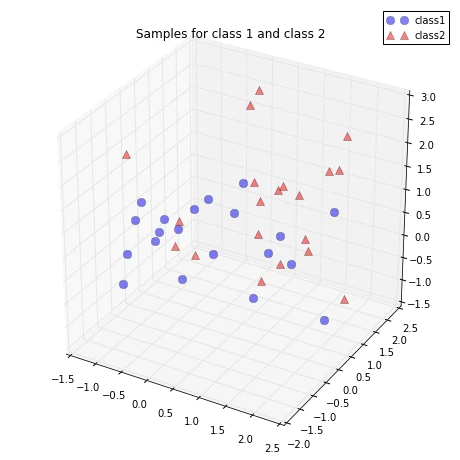

Just to get a rough idea how the samples of our two classes $\omega_1$ and $\omega_2$ are distributed, let us plot them in a 3D scatter plot.

%pylab inline
from matplotlib import pyplot as plt
from mpl_toolkits.mplot3d import Axes3D
from mpl_toolkits.mplot3d import proj3d

fig = plt.figure(figsize=(8,8))
ax = fig.add_subplot(111, projection='3d')
plt.rcParams['legend.fontsize'] = 10
ax.plot(class1_sample[0,:], class1_sample[1,:], class1_sample[2,:],
        'o', markersize=8, color='blue', alpha=0.5, label='class1')
ax.plot(class2_sample[0,:], class2_sample[1,:], class2_sample[2,:],
        '^', markersize=8, alpha=0.5, color='red', label='class2')

plt.title('Samples for class 1 and class 2')
ax.legend(loc='upper right')

plt.show()
Populating the interactive namespace from numpy and matplotlib

1. Taking the whole dataset ignoring the class labels

Because we don't need class labels for the PCA analysis, let us merge the samples for our 2 classes into one $3\times40$-dimensional array.

all_samples = np.concatenate((class1_sample, class2_sample), axis=1)
assert all_samples.shape == (3,40), "The matrix has not the dimensions 3x40"

2. Computing the d-dimensional mean vector

mean_x = np.mean(all_samples[0,:])
mean_y = np.mean(all_samples[1,:])
mean_z = np.mean(all_samples[2,:])

mean_vector = np.array([[mean_x],[mean_y],[mean_z]])

print('Mean Vector:\n', mean_vector)
Mean Vector:
 [[ 0.41667492]
 [ 0.69848315]
 [ 0.49242335]]

3. a) Computing the Scatter Matrix

The scatter matrix is computed by the following equation:
$S = \sum\limits_{k=1}^n (\mathbf{x}_k - \mathbf{m})\;(\mathbf{x}_k - \mathbf{m})^T$
where $\mathbf{m}$ is the mean vector
$\mathbf{m} = \frac{1}{n} \sum\limits_{k=1}^n \; \mathbf{x}_k$

scatter_matrix = np.zeros((3,3))
for i in range(all_samples.shape[1]):
    scatter_matrix += (all_samples[:,i].reshape(3,1) - mean_vector).dot(
        (all_samples[:,i].reshape(3,1) - mean_vector).T)
print('Scatter Matrix:\n', scatter_matrix)
Scatter Matrix:
 [[ 38.4878051   10.50787213  11.13746016]
 [ 10.50787213  36.23651274  11.96598642]
 [ 11.13746016  11.96598642  49.73596619]]

3. b) Computing the Covariance Matrix (alternatively to the scatter matrix)

Alternatively, instead of calculating the scatter matrix, we could also calculate the covariance matrix using the in-built numpy.cov() function. The equations for the covariance matrix and scatter matrix are very similar, the only difference is, that we use the scaling factor $\frac{1}{N-1}$ (here: $\frac{1}{40-1} = \frac{1}{39}$) for the covariance matrix. Thus, their eigenspaces will be identical (identical eigenvectors, only the eigenvalues are scaled differently by a constant factor).

$$\Sigma_i = \Bigg[ \begin{array}{cc} \sigma_{11}^2 & \sigma_{12}^2 & \sigma_{13}^2\\ \sigma_{21}^2 & \sigma_{22}^2 & \sigma_{23}^2\\ \sigma_{31}^2 & \sigma_{32}^2 & \sigma_{33}^2\\ \end{array} \Bigg]$$
cov_mat = np.cov([all_samples[0,:],all_samples[1,:],all_samples[2,:]])
print('Covariance Matrix:\n', cov_mat)
Covariance Matrix:
 [[ 0.9868668   0.26943262  0.2855759 ]
 [ 0.26943262  0.92914135  0.30682016]
 [ 0.2855759   0.30682016  1.27528118]]

4. Computing eigenvectors and corresponding eigenvalues

To show that the eigenvectors are indeed identical whether we derived them from the scatter or the covariance matrix, let us put an assert statement into the code. Also, we will see that the eigenvalues were indeed scaled by the factor 39 when we derived it from the scatter matrix.

# eigenvectors and eigenvalues for the from the scatter matrix
eig_val_sc, eig_vec_sc = np.linalg.eig(scatter_matrix)

# eigenvectors and eigenvalues for the from the covariance matrix
eig_val_cov, eig_vec_cov = np.linalg.eig(cov_mat)

for i in range(len(eig_val_sc)):
    eigvec_sc = eig_vec_sc[:,i].reshape(1,3).T
    eigvec_cov = eig_vec_cov[:,i].reshape(1,3).T
    assert eigvec_sc.all() == eigvec_cov.all(), 'Eigenvectors are not identical'

    print('Eigenvector {}: \n{}'.format(i+1, eigvec_sc))
    print('Eigenvalue {} from scatter matrix: {}'.format(i+1, eig_val_sc[i]))
    print('Eigenvalue {} from covariance matrix: {}'.format(i+1, eig_val_cov[i]))
    print('Scaling factor: ', eig_val_sc[i]/eig_val_cov[i])
    print(40 * '-')
Eigenvector 1:
[[-0.49210223]
 [-0.47927902]
 [-0.72672348]]
Eigenvalue 1 from scatter matrix: 65.16936779078195
Eigenvalue 1 from covariance matrix: 1.671009430532869
Scaling factor:  39.0
----------------------------------------
Eigenvector 2:
[[-0.64670286]
 [-0.35756937]
 [ 0.67373552]]
Eigenvalue 2 from scatter matrix: 32.69471296321799
Eigenvalue 2 from covariance matrix: 0.838325973415845
Scaling factor:  39.0
----------------------------------------
Eigenvector 3:
[[ 0.58276136]
 [-0.8015209 ]
 [ 0.13399043]]
Eigenvalue 3 from scatter matrix: 26.596203282097097
Eigenvalue 3 from covariance matrix: 0.6819539303101814
Scaling factor:  39.0
----------------------------------------

Checking the eigenvector-eigenvalue calculation

Let us quickly check that the eigenvector-eigenvalue calculation is correct and satisfy the equation

$\mathbf\Sigma\mathbf{v} = \lambda\mathbf{v}$

where
$\mathbf\Sigma = Covariance \; matrix\ \mathbf{v} = \; Eigenvector\ \lambda = \; Eigenvalue$

for i in range(len(eig_val_sc)):
    eigv = eig_vec_sc[:,i].reshape(1,3).T
    np.testing.assert_array_almost_equal(scatter_matrix.dot(eigv),
                                         eig_val_sc[i] * eigv,
                                         decimal=6, err_msg='', verbose=True)

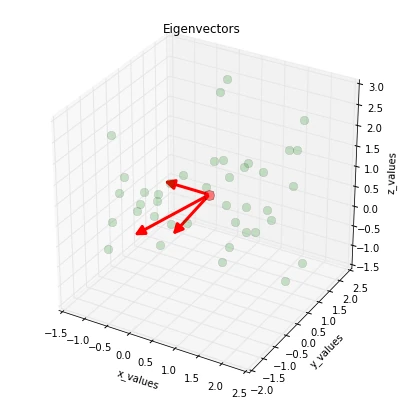

Visualizing the eigenvectors

And before we move on to the next step, just to satisfy our own curiosity, we plot the eigenvectors centered at the sample mean.

%matplotlib inline

from matplotlib import pyplot as plt
from mpl_toolkits.mplot3d import Axes3D
from mpl_toolkits.mplot3d import proj3d
from matplotlib.patches import FancyArrowPatch


class Arrow3D(FancyArrowPatch):
    def __init__(self, xs, ys, zs, *args, **kwargs):
        FancyArrowPatch.__init__(self, (0,0), (0,0), *args, **kwargs)
        self._verts3d = xs, ys, zs

    def draw(self, renderer):
        xs3d, ys3d, zs3d = self._verts3d
        xs, ys, zs = proj3d.proj_transform(xs3d, ys3d, zs3d, renderer.M)
        self.set_positions((xs[0],ys[0]),(xs[1],ys[1]))
        FancyArrowPatch.draw(self, renderer)

fig = plt.figure(figsize=(7,7))
ax = fig.add_subplot(111, projection='3d')

ax.plot(all_samples[0,:], all_samples[1,:], all_samples[2,:],
        'o', markersize=8, color='green', alpha=0.2)
ax.plot([mean_x], [mean_y], [mean_z],
        'o', markersize=10, color='red', alpha=0.5)
for v in eig_vec_sc.T:
    a = Arrow3D([mean_x, v[0]+mean_x],
                [mean_y, v[1]+mean_y],
                [mean_z, v[2]+mean_z],
                mutation_scale=20, lw=3, arrowstyle="-|>", color="r")

    ax.add_artist(a)
ax.set_xlabel('x_values')
ax.set_ylabel('y_values')
ax.set_zlabel('z_values')

plt.title('Eigenvectors')

plt.show()


5.1. Sorting the eigenvectors by decreasing eigenvalues

We started with the goal to reduce the dimensionality of our feature space, i.e., projecting the feature space via PCA onto a smaller subspace, where the eigenvectors will form the axes of this new feature subspace. However, the eigenvectors only define the directions of the new axis, since they have all the same unit length 1, which we can confirm by the following code:

for ev in eig_vec_sc:
    numpy.testing.assert_array_almost_equal(1.0, np.linalg.norm(ev))
    # instead of 'assert' because of rounding errors

So, in order to decide which eigenvector(s) we want to drop for our lower-dimensional subspace, we have to take a look at the corresponding eigenvalues of the eigenvectors. Roughly speaking, the eigenvectors with the lowest eigenvalues bear the least information about the distribution of the data, and those are the ones we want to drop.
The common approach is to rank the eigenvectors from highest to lowest corresponding eigenvalue and choose the top $k$ eigenvectors.

# Make a list of (eigenvalue, eigenvector) tuples
eig_pairs = [(np.abs(eig_val_sc[i]), eig_vec_sc[:,i])
             for i in range(len(eig_val_sc))]

# Sort the (eigenvalue, eigenvector) tuples from high to low
eig_pairs.sort()
eig_pairs.reverse()

# Visually confirm that the list is correctly sorted by decreasing eigenvalues
for i in eig_pairs:
    print(i[0])
65.1693677908
32.6947129632
26.5962032821

5.2. Choosing k eigenvectors with the largest eigenvalues

For our simple example, where we are reducing a 3-dimensional feature space to a 2-dimensional feature subspace, we are combining the two eigenvectors with the highest eigenvalues to construct our $d \times k$-dimensional eigenvector matrix $\mathbf{W}$.

matrix_w = np.hstack((eig_pairs[0][1].reshape(3,1),
                      eig_pairs[1][1].reshape(3,1)))
print('Matrix W:\n', matrix_w)
Matrix W:
 [[-0.49210223 -0.64670286]
 [-0.47927902 -0.35756937]
 [-0.72672348  0.67373552]]

6. Transforming the samples onto the new subspace

In the last step, we use the $2\times 3$-dimensional matrix $\mathbf{W}$ that we just computed to transform our samples onto the new subspace via the equation $$\mathbf{y} = \mathbf{W}^T \times \mathbf{x}$$.

transformed = matrix_w.T.dot(all_samples)
assert transformed.shape == (2,40), "The matrix is not 2x40 dimensional."
plt.plot(transformed[0,0:20], transformed[1,0:20],
         'o', markersize=7, color='blue', alpha=0.5, label='class1')
plt.plot(transformed[0,20:40], transformed[1,20:40],
         '^', markersize=7, color='red', alpha=0.5, label='class2')
plt.xlim([-5,5])
plt.ylim([-5,5])
plt.xlabel('x_values')
plt.ylabel('y_values')
plt.legend()
plt.title('Transformed samples with class labels')

plt.show()

Using the PCA() class from the matplotlib.mlab library

Now, that we have seen how a principal component analysis works, we can use the in-built PCA() class from the matplotlib library for our convenience in future applications. Unfortunately, the original documentation (http://matplotlib.sourceforge.net/api/mlab_api.html#matplotlib.mlab.PCA) is very sparse;
a better documentation can be found here: https://www.clear.rice.edu/comp130/12spring/pca/pca_docs.shtml.

And the original code implementation of the PCA() class can be viewed at:
https://sourcegraph.com/github.com/matplotlib/matplotlib/symbols/python/lib/matplotlib/mlab/PCA

Class attributes of PCA()

Attrs:

a : a centered unit sigma version of input a

numrows, numcols: the dimensions of a

mu : a numdims array of means of a

sigma : a numdims array of atandard deviation of a

fracs : the proportion of variance of each of the principal components

Wt : the weight vector for projecting a numdims point or array into PCA space

Y : a projected into PCA space

Also, it has to be mentioned that the PCA() class expects a np.array() as input where: 'we assume data in a is organized with numrows>numcols'), so that we have to transpose our dataset.

matplotlib.mlab.PCA() keeps all $d$-dimensions of the input dataset after the transformation (stored in the class attribute PCA.Y), and assuming that they are already ordered ("Since the PCA analysis orders the PC axes by descending importance in terms of describing the clustering, we see that fracs is a list of monotonically decreasing values.", https://www.clear.rice.edu/comp130/12spring/pca/pca_docs.shtml) we just need to plot the first 2 columns if we are interested in projecting our 3-dimensional input dataset onto a 2-dimensional subspace.

from matplotlib.mlab import PCA as mlabPCA

mlab_pca = mlabPCA(all_samples.T)

print('PC axes in terms of the measurement axes scaled by the standard deviations:\n', mlab_pca.Wt)

plt.plot(mlab_pca.Y[0:20,0],mlab_pca.Y[0:20,1],
         'o', markersize=7, color='blue', alpha=0.5, label='class1')
plt.plot(mlab_pca.Y[20:40,0], mlab_pca.Y[20:40,1],
         '^', markersize=7, color='red', alpha=0.5, label='class2')

plt.xlabel('x_values')
plt.ylabel('y_values')
plt.xlim([-4,4])
plt.ylim([-4,4])
plt.legend()
plt.title('Transformed samples with class labels from matplotlib.mlab.PCA()')

plt.show()
PC axes in terms of the measurement axes scaled by the standard deviations:
 [[-0.57087338 -0.58973911 -0.5712367 ]
 [-0.71046744  0.006114    0.70370352]
 [ 0.41150894 -0.80757068  0.42248075]]

Differences between the step by step approach and matplotlib.mlab.PCA()

When we plot the transformed dataset onto the new 2-dimensional subspace, we observe that the scatter plots from our step by step approach and the matplotlib.mlab.PCA() class do not look identical. This is due to the fact that matplotlib.mlab.PCA() class scales the variables to unit variance prior to calculating the covariance matrices. This will/could eventually lead to different variances along the axes and affect the contribution of the variable to principal components.

One example where a scaling would make sense would be if one variable was measured in the unit inches where the other variable was measured in cm.
However, for our hypothetical example, we assume that both variables have the same (arbitrary) unit, so that we skipped the step of scaling the input data.

Using the PCA() class from the sklearn.decomposition library to confirm our results

In order to make sure that we have not made a mistake in our step by step approach, we will use another library that doesn't rescale the input data by default.
Here, we will use the PCA class from the scikit-learn machine-learning library. The documentation can be found here:
http://scikit-learn.org/stable/modules/generated/sklearn.decomposition.PCA.html.

For our convenience, we can directly specify to how many components we want to reduce our input dataset via the n_components parameter.

n_components : int, None or string

Number of components to keep. if n_components is not set all components are kept:
    n_components == min(n_samples, n_features)
    if n_components == ‘mle’, Minka’s MLE is used to guess the dimension if 0 < n_components < 1,
    select the number of components such that the amount of variance that needs to be explained
    is greater than the percentage specified by n_components

Next, we just need to use the .fit_transform() in order to perform the dimensionality reduction.

from sklearn.decomposition import PCA as sklearnPCA

sklearn_pca = sklearnPCA(n_components=2)
sklearn_transf = sklearn_pca.fit_transform(all_samples.T)

plt.plot(sklearn_transf[0:20,0],sklearn_transf[0:20,1],
         'o', markersize=7, color='blue', alpha=0.5, label='class1')
plt.plot(sklearn_transf[20:40,0], sklearn_transf[20:40,1],
         '^', markersize=7, color='red', alpha=0.5, label='class2')

plt.xlabel('x_values')
plt.ylabel('y_values')
plt.xlim([-4,4])
plt.ylim([-4,4])
plt.legend()
plt.title('Transformed samples using sklearn.decomposition.PCA()')
plt.show()


#### Compare with step-by-step approach

transformed[1] = transformed[1]*(-1) # invert the PC2 axis

plt.plot(transformed[0,0:20], transformed[1,0:20],
         'o', markersize=7, color='blue', alpha=0.5, label='class1')
plt.plot(transformed[0,20:40], transformed[1,20:40],
         '^', markersize=7, color='red', alpha=0.5, label='class2')
plt.xlim([-5,4])
plt.ylim([-5,4])
plt.xlabel('x_values')
plt.ylabel('y_values')
plt.legend()
plt.title('Transformed samples via step-by-step approach')
plt.show()

In some cases, when we are comparing PCA results from different tools, it may happen that we obtain mirror images of the plot along one or more component axes. This is due to the fact that the signs of the eigenvectors can be either positive or negative depending on the eigen-solver. However, since the eigenvectors are scaled to the unit length 1, we can simply multiply the transformed data by $\times(-1)$ to invert the mirror image for the respective axis.

Appendix A: The effect of scaling and mean centering of variables prior to a Principal Component Analysis

Let us think about whether it matters or not if the variables are centered for applications such as Principal Component Analysis (PCA) if the PCA is calculated from the covariance matrix (i.e., the \(k\) principal components are the eigenvectors of the covariance matrix that correspond to the \(k\) largest eigenvalues.

1. Mean centering does not affect the covariance matrix

Here, the rational is: If the covariance is the same whether the variables are centered or not, the result of the PCA will be the same.

Let’s assume we have the 2 variables \(\bf{x}\) and \(\bf{y}\) Then the covariance between the attributes is calculated as

\[ \sigma_{xy} = \frac{1}{n-1} \sum_{i}^{n} (x_i - \bar{x})(y_i - \bar{y}) \]

Let us write the centered variables as

\[ x' = x - \bar{x} \text{ and } y' = y - \bar{y} \]

The centered covariance would then be calculated as follows:

\[ \sigma_{xy}' = \frac{1}{n-1} \sum_{i}^{n} (x_i' - \bar{x}')(y_i' - \bar{y}') \]

But since after centering, \(\bar{x}' = 0\) and \(\bar{y}' = 0\) we have

\[ \sigma_{xy}' = \frac{1}{n-1} \sum_{i}^{n} x_i' y_i' \] which is our original covariance matrix if we resubstitute back the terms \[ x' = x - \bar{x} \text{ and } y' = y - \bar{y} \].

Even centering only one variable, e.g., \(\bf{x}\) wouldn’t affect the covariance:

\[ \sigma_{\text{xy}} = \frac{1}{n-1} \sum_{i}^{n} (x_i' - \bar{x}')(y_i - \bar{y}) \] \[ = \frac{1}{n-1} \sum_{i}^{n} (x_i' - 0)(y_i - \bar{y}) \] \[ = \frac{1}{n-1} \sum_{i}^{n} (x_i - \bar{x})(y_i - \bar{y}) \]

2. Scaling of variables does affect the covariance matrix

If one variable is scaled, e.g, from pounds into kilogram (1 pound = 0.453592 kg), it does affect the covariance and therefore influences the results of a PCA.

Let \(c\) be the scaling factor for \(\bf{x}\)

Given that the “original” covariance is calculated as

\[ \sigma_{xy} = \frac{1}{n-1} \sum_{i}^{n} (x_i - \bar{x})(y_i - \bar{y}) \]

the covariance after scaling would be calculated as:

\[ \sigma_{xy}' = \frac{1}{n-1} \sum_{i}^{n} (c \cdot x_i - c \cdot \bar{x})(y_i - \bar{y}) \] \[ = \frac{c}{n-1} \sum_{i}^{n} (x_i - \bar{x})(y_i - \bar{y}) \]

\[ \Rightarrow \sigma_{xy} = \frac{\sigma_{xy}'}{c} \] \[ \Rightarrow \sigma_{xy}' = c \cdot \sigma_{xy} \]

Therefore, the covariance after scaling one attribute by the constant \(c\) will result in a rescaled covariance \(c \sigma_{xy}\) So if we’d scaled \(\bf{x}\) from pounds to kilograms, the covariance between \(\bf{x}\) and \(\bf{y}\) will be 0.453592 times smaller.

3. Standardizing affects the covariance

Standardization of features will have an effect on the outcome of a PCA (assuming that the variables are originally not standardized). This is because we are scaling the covariance between every pair of variables by the product of the standard deviations of each pair of variables.

The equation for standardization of a variable is written as

\[ z = \frac{x_i - \bar{x}}{\sigma} \]

The “original” covariance matrix:

\[ \sigma_{xy} = \frac{1}{n-1} \sum_{i}^{n} (x_i - \bar{x})(y_i - \bar{y}) \]

And after standardizing both variables:

\[ x' = \frac{x - \bar{x}}{\sigma_x} \text{ and } y' =\frac{y - \bar{y}}{\sigma_y} \]

\[ \sigma_{xy}' = \frac{1}{n-1} \sum_{i}^{n} (x_i' - 0)(y_i' - 0) \]

\[ = \frac{1}{n-1} \sum_{i}^{n} \bigg(\frac{x - \bar{x}}{\sigma_x}\bigg)\bigg(\frac{y - \bar{y}}{\sigma_y}\bigg) \]

\[ = \frac{1}{(n-1) \cdot \sigma_x \sigma_y} \sum_{i}^{n} (x_i - \bar{x})(y_i - \bar{y}) \]

\[ \Rightarrow \sigma_{xy}' = \frac{\sigma_{xy}}{\sigma_x \sigma_y} \]

Appendix B: PCA based on the covariance matrix vs. correlation matrix

The purpose of this section is to show that a Principal Component Analysis based on the covariance matrix of the standardized data yields similar results to an PCA using the correlation matrix (the correlation matrix can be defined as the standardized covariance matrix).

A common application of PCA is to reduce the dimensions of the dataset with minimal loss of information where the entire dataset (\(d\) dimensions) is projected onto a new subspace (\(k\) dimensions where \(k < d\)). This method of projection is useful in order to reduce the computational costs and the error of parameter estimation (“curse of dimensionality”). The standard PCA approach can be summarized in six simple steps:

  1. Compute the covariance matrix of the original or standardized \(d\)-dimensional dataset \(\textbf{X}\) (here: \(d = 3\)); alternatively, compute the correlation matrix.
  2. Eigendecomposition: Compute the eigenvectors and eigenvalues of the covariance matrix (or correlation matrix).
  3. Sort the eigenvalues in descending order.
  4. Choose the \(k\) eigenvectors that correspond to the \(k\) largest eigenvalues where \(k\) is the number of dimensions of the new feature subspace (\(k \le d\)).
  5. Construct the projection matrix \(\textbf{W}\) from the \(k\) selected eigenvectors.
  6. Transform the original dataset \(\textbf{X}\) to obtain the \(k\) dimensional feature subspace \(\textbf{Y}\) (\(\textbf{Y} = \textbf{W}^T \cdot \textbf{X}\)).

Whether to standardize the data prior to a PCA on the covariance matrix (or correlation matrix) depends on the measurement scales of the original features. Since PCA yields a feature subspace that maximizes the variance along the axes, it makes sense to standardize the data if it was measured on different scales.

Dataset

The Iris flower dataset will be used for this example. The dataset consists of 150 samples with 4 different features that have all been measured in the unit centimeter. For demonstration purposes, the first feature will be converted to inches and the second feature to meters, respectively.

from sklearn.datasets import load_iris
from sklearn.preprocessing import StandardScaler
import numpy as np
import matplotlib.pyplot as plt

data = load_iris()
X = data.data

# convert features in column 1 from cm to inches
X[:,0] /= 2.54
# convert features in column 2 from cm to meters
X[:,1] /= 100

PCA Based on the Covariance Matrix of the Raw Data

def pca_raw_cov(X):
    # Compute the covariance matrix
    cov_mat = np.cov(X.T)

    # Eigendecomposition of the covariance matrix
    eig_val_cov, eig_vec_cov = np.linalg.eig(cov_mat)

    # Make a list of (eigenvalue, eigenvector) tuples
    # and sort the (eigenvalue, eigenvector) tuples from high to low
    eig_pairs_cov = [(np.abs(eig_val_cov[i]), eig_vec_cov[:,i]) for i in range(len(eig_val_cov))]
    eig_pairs_cov.sort()
    eig_pairs_cov.reverse()

    # Construct the transformation matrix W from the eigenvalues that correspond to
    # the k largest eigenvalues (here: k = 2)
    matrix_w_cov = np.hstack((eig_pairs_cov[0][1].reshape(4,1), eig_pairs_cov[1][1].reshape(4,1)))

    # Transform the data using matrix W
    X_raw_transf = matrix_w_cov.T.dot(X.T).T

    # Plot the data
    plt.scatter(X_raw_transf[:,0], X_raw_transf[:,1])
    plt.title('PCA based on the covariance matrix of the raw data')
    plt.show()

PCA Based on the Covariance Matrix of the Standardized Data

def pca_standardize_cov(X):

    # Standardize data
    X_std = StandardScaler().fit_transform(X)

    # Compute the covariance matrix
    cov_mat = np.cov(X_std.T)

    # Eigendecomposition of the covariance matrix
    eig_val_cov, eig_vec_cov = np.linalg.eig(cov_mat)

    # Make a list of (eigenvalue, eigenvector) tuples
    # and sort the (eigenvalue, eigenvector) tuples from high to low
    eig_pairs_cov = [(np.abs(eig_val_cov[i]), eig_vec_cov[:,i]) for i in range(len(eig_val_cov))]
    eig_pairs_cov.sort()
    eig_pairs_cov.reverse()

    # Construct the transformation matrix W from the eigenvalues that correspond to
    # the k largest eigenvalues (here: k = 2)
    matrix_w_cov = np.hstack((eig_pairs_cov[0][1].reshape(4,1), eig_pairs_cov[1][1].reshape(4,1)))

    # Transform the data using matrix W
    X_std_transf = matrix_w_cov.T.dot(X_std.T).T

    # Plot the data
    plt.scatter(X_std_transf[:,0], X_std_transf[:,1])
    plt.title('PCA based on the covariance matrix after standardizing the data')
    plt.show()

PCA Based on the Correlation Matrix

def pca_cor(X):

    # Standardize data
    X_std = StandardScaler().fit_transform(X)

    # Compute the correlation matrix
    cor_mat = np.corrcoef(X.T)

    # Eigendecomposition of the correlation matrix
    eig_val_cor, eig_vec_cor = np.linalg.eig(cor_mat)

    # Make a list of (eigenvalue, eigenvector) tuples
    # and sort the (eigenvalue, eigenvector) tuples from high to low
    eig_pairs_cor = [(np.abs(eig_val_cor[i]), eig_vec_cor[:,i]) for i in range(len(eig_val_cor))]
    eig_pairs_cor.sort()
    eig_pairs_cor.reverse()

    # Construct the transformation matrix W from the eigenvalues that correspond to
    # the k largest eigenvalues (here: k = 2)
    matrix_w_cor = np.hstack((eig_pairs_cor[0][1].reshape(4,1), eig_pairs_cor[1][1].reshape(4,1)))

    # Transform the data using matrix W
    X_transf = matrix_w_cor.T.dot(X_std.T).T

    # Plot the data
    plt.scatter(X_transf[:,0], X_transf[:,1])
    plt.title('PCA based on the correlation matrix of the raw data')
    plt.show()

PCA Using scikit-learn (based on SVD)

from sklearn.decomposition import PCA

def scikit_pca(X):

    # Standardize
    X_std = StandardScaler().fit_transform(X)

    # PCA
    sklearn_pca = PCA(n_components=2)
    X_transf = sklearn_pca.fit_transform(X_std)

    # Plot the data
    plt.scatter(X_transf[:,0], X_transf[:,1])
    plt.title('PCA via scikit-learn (using SVD)')
    plt.show()

Results

pca_raw_cov(X)
pca_standardize_cov(X)
pca_cor(X)

The plot of the transformed data shows that PCA based on the correlation matrix produces similar results to a PCA based on the covariance matrix of the standardized data.

comments powered by Disqus
